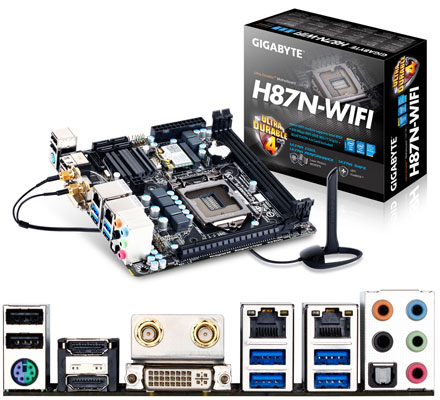

Gigabyte GA-H87N-WIFI (for i3, i5, i7 [Sockel LGA1150], Haswell, 2x LAN, 2x HDMI, WLAN/BT, Intel Wireless Display) new

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Intel WiFi, Intel WiDi !
Dual Gigabit LAN !
Gigabyte Features !
Intel Haswell !

Supports 4^th Generation Intel^® Core™ processors
Mini ITX Form Factor (17*17cm)
GIGABYTE Ultra Durable™ 4 Plus Technology
Supports Intel^® WiFi/ WIDI technology
Integrated Bluetooth 4.0 and Intel Wi-Fi module
GIGABYTE Hybrid digital power engine
GIGABYTE UEFI DualBIOS™
GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
GIGABYTE On/Off Charge™ for USB devices
Dual LAN with high ESD Protection
Dual HDMI 1.4 and DVI-I ports
Intel^® Small Business Advantage

CPU	LGA1150
Graphics	Intel HD Graphics
Formfactor	ITX (17x17cm)
RAM	2x DDR-III
Audio	Realtek ALC892 7.1
Base	Intel ITX

USB	4x USB2.0, 6x USB3.0
Firewire	--
IDE/SATA	4x SATA 6Gb/s
LAN	2x 10/100/1000
Parallel	--
Serial	--

yes	TV-Out
no	PCI
yes	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® H87 Express Chipset
Memory	2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x DVI-I port, supporting a maximum resolution of 1920x1200 2 x HDMI ports, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 1 GB
Audio	Realtek^® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Intel^® GbE LAN chip (10/100/1000 Mbit)(LAN1) Atheros^® GbE LAN chip (10/100/1000 Mbit)(LAN2) * Teaming is not supported.
Wireless Communication module	Wi-Fi 802.11 b/g/n, supporting 2.4 GHz Single-Band Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x mini-PCI Express slot for the wireless communication module
Storage Interface	Chipset: 4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB	Chipset: Up to 4 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Up to 6 USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x S/PDIF Out header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 2 x HDMI ports 2 x antenna connectors 1 x DVI-I port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Smart TimeLock USB Blocker Support for ON/OFF Charge Support for Wi-Fi Share Support for Cloud Station
Bundle Software	Norton Internet Security (OEM version) Intel^® Rapid Start Technology Intel^® Smart Connect Technology Intel^® Smart Response Technology Intel^® Small Business Advantage Intel^® Wireless Display
Operating System	Support for Windows 8/7
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Data sheet	Download (PDF)
Data sheet	Print view
