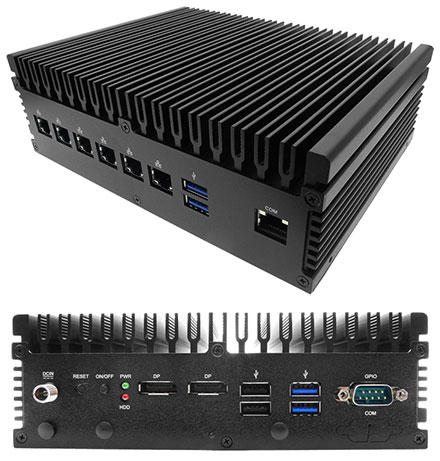

Jetway JBC385F551W-6300U-B (Intel Skylake)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JBC385F551W-6300U-B (Intel Skylake)

  • INTEL® Skylake-U(i5-6200U /i5-6300U)
  • Support 2 * DDR4 2133MHz Dual Channel SO-DIMM, max up to 32GB
  • 1 * 2.5" SATA Device
  • 1 * m-SATA SSD Device (Mini PCIe)
  • 6 * Intel® PCIe GbE LAN
  • 1 * External COM (RJ-45), 1 * Internal COM (Option)
  • 4 * External USB3.0, 2 * USB1.1/2.0, 2 * Internal USB1.1/2.0
  • 2 * DP (max resolution:4096 x 2304@60Hz)
  • 1 * GPIO (8 bit programmable inputs/outputs)
  • Support CPU Smart FAN


Share

Product Dimension 185 (W) * 142 (H) * 60 (D) mm
Construction Aluminum housing
Colors Black
Model Name JBC385F551-6200U-B (i5-6200U) JBC385F551-6300U-B (i5-6300U)
MB Model JNF551-6200U JNF551-6300U
BIOS AMI 128Mb Flash ROM
CPU INTEL® Skylake-U(i5-6200U /i5-6300U), TDP: 15W
Memory 2 * SO-DIMM DDR4 2133MHz (Max. 32GB)
Storage Space 1 * 2.5” SATA Device 1 * m-SATA SSD Device (Mini PCIe)
Front I/O Port 2 * USB 3.0 1 * COM (RJ-45 Type) 6 * RJ45 (GbE LAN: Intel i211AT/i219LM/i350AM4)
Rear I/O Port 2 * USB 2.0 2 * USB 3.0 2 * DP (max resolution:4096 x 2304@60Hz) 1 * GPIO (8 bit programmable inputs/outputs) 1 * COM (Option) WiFi (optional / JBC385F551W-6X00U-B)
Expansion Interface Mini PCIe # 1 : Full-size (for mini PCIe module) Mini PCIe # 2 : Full-size (one shared with mSATA)
Power Source Lockable 12V DC-in Jack Adapter: AC 90~240V / DC 12V_5A / 60W
Packing Net Weight：2.2KG Gross Weight：3.5KG Color Box Dimension：250 (W) x 118 (D) x 295 (H) mm
Environment Operating within 0 ~ 50°C Storage within -20 ~ 70°C
Mounting Wall mounting Kits
Certification EMC : CE , FCC Safety : RoHS , ErP
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
