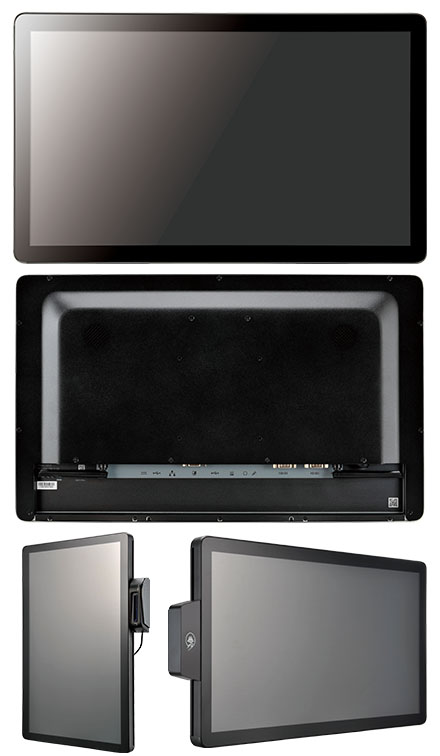

Mitac D210-11KS-7100U [Intel i3-7100U] 21.5" Panel PC (1920x1080, IP65 Front, Fanless)

Mitac D210-11KS-7100U [Intel i3-7100U] 21.5" Panel PC (1920x1080, IP65 Front, Fanless)
  • 1920x1080 Touchscreen !
  • Fanless ! IP65 Front !
  • Intel Apollo Lake !
  • 2x LAN, 2x COM !

  • Industrial-grade 21.5" FullHD TFT LCD with 40,000 hrs backlight lifetime
  • True-flat touchscreen with projected capacitive multi-touch control
  • Front panel IP65-rated, fanless design
  • Support multiple mounting modules (webcam, NFC/RFID, barcode)




Share

1449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
LCD
Display Type 21.5" TFT-LCD
Max. Resolution 1920 x 1080
Max. Colors 16.7M (8 bit/color)
Luminance 250 cd/m2
Viewing Angle 178°(H), 178°( V)
LED Backlight lifetime (Hours) 40,000
TOUCH SCREEN
Type P-CAP
Touch Screen True-flat 10 points
SYSTEM
Processor 7th Gen Kaby Lake Intel i3-7100U
Chipset Intel® SoC integrated
System Memory DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
Ethernet
Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN
I/O Port 2 x RJ45
1 x Audio Jack (combo Line-out + Mic-in)
1 x RS232
1 x RS232 / 422 / 485
1 x DisplayPort 1.2 /
1 x DC Jack /
4 x USB 3.0 /
1 x HDMI 1.4
Watchdog Timer 1~255 steps by software program
Storage Disk Drive SATA 2.5” HDD/SSD bay x 1
Expansion Slot M.2 2230 E key (PCIe, USB 2.0) / Mini PCIe Full size (PCIe / USB / SATA)
Stereo Speaker 2 x 3W
OS Support Windows 10 64bit, Linux (support by request)
POWER REQUIREMENT
Power Input DC 8~24V
Power Adapter AC to DC, DC19V 65W adaptor
MECHANICAL
Mounting VESA 100 / Stand
Dimension 520 x 315 x 42 mm
Weight 6.0kg
ENVIRONMENTAL
Operating Temperature 0°C ~ 40°C (32 ~ 104°F)
Storage Temperature -20 ~ 60°C (-4 ~140°F)
Storage Humidity 10% ~ 95% @40°C non-condensing
Vibration Resistance Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD
Shock Resistance
EMC CE / FCC Class B
Front Panel Protection IP65 Compliant
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
