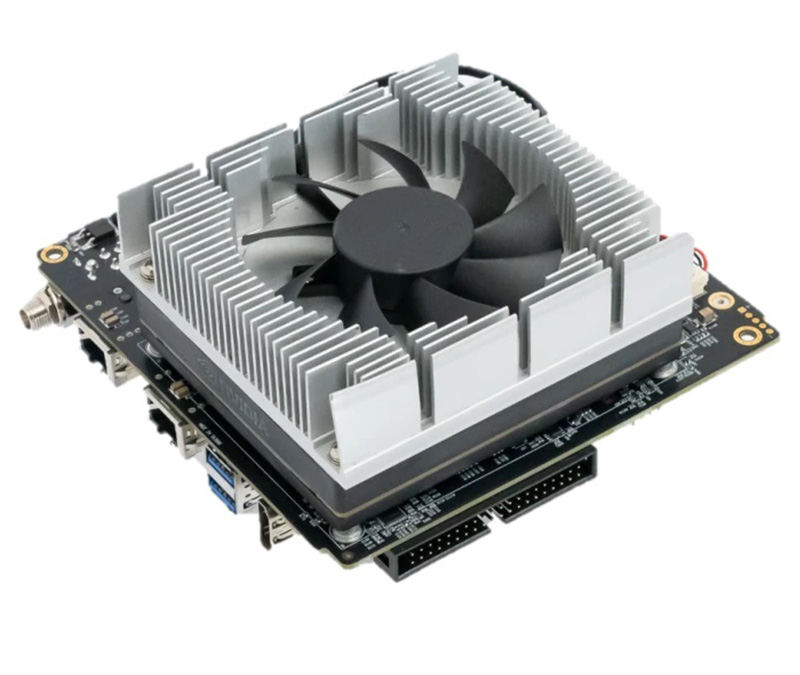

AVerMedia D315AO-64G Engineering Kit (NVIDIA Jetson AGX Orin, 64GB)

AVerMedia D315AO-64G Engineering Kit (NVIDIA Jetson AGX Orin, <b>64GB</b>)
  • NVidia Jetson AGX !
  • 64 GB !

  • 120-pin high speed connector for MIPI SerDes cameras, such as GMSL2/FPD-linkIII/V-by-One® HS, to deploy in AMRs application
  • 1x GbE & 1x 10G RJ-45 ethernet for dozens of IPcameras streaming simultaneously in smart security application
  • 10GigE Vision camera connector for smart inspection
  • 1xPCIe slot for multi-function expansion.
  • 1xM.2.Ekey for Wi-Fi6E, 1xmPCIe for 4G & 5G with adaptercard, and 1xM.2 Mkey for SSD and capture
  • Operating temperature: -25°C ~ 70°C
  • Dimension: 141.5mm(W) x 133.5mm(L) x 63mm(H)



Share

3079.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
NVIDIA Jetson SoM NVIDIA® Jetson AGX Orin™module (64GB)
Networking 1x GbE RJ-45 1x 10G RJ-45 1x M.2 E key  (for Wi-Fi 6E)
Display Output 1x HDMI 2.0 (3840x2160at 60Hz)
Temperature Operating temperature -25°C~70°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
MIPI & SerDes Camera (120-pin) GMSL2/FPD-link III/V-by-One® HS(optional)
USB 1x USB 2.0 Micro-B for recovery
2x USB 2.0 Type-A
2x USB 3.2 Type-A
Audio Intel HD Audio analog connector
Storage 1x micro-SD card slot
Expansion Header • 40-pin (UART, SPI, CAN, I2C, I2S, GPIOs )
• 1x M.2 E key (for Wi-Fi 6E)
• 1x M.2M key (for SSD or AVerMediacapture card: CL312H1, CN311-H, CN312SW, CN312MW)
• 1x Micro SIM socket
• 1xmPCIe(for 4GLTE moduleor5G module via adapter card)
• 1x PCIe x16
• 1xCANbuswithtransceiver
• 120-pin (for MIPI SerDes)
Input Power DC in jack on board & ATX 4-pin (54V/2.78A, 9V~54V is recommended)
Power Cord US/JP/EU/UK/TW/AU/CN
Thermal Solution Fan(optional)
Buttons Power and Recovery
RTC Battery Support RTC Battery and Battery Life Monitoring by MCU
Dimensions 141.5mm (W) x 133.5mm (L) x 63mm (H)
Certifications CE, FCC, KC
Data sheet Download (PDF)
Data sheet Print view
