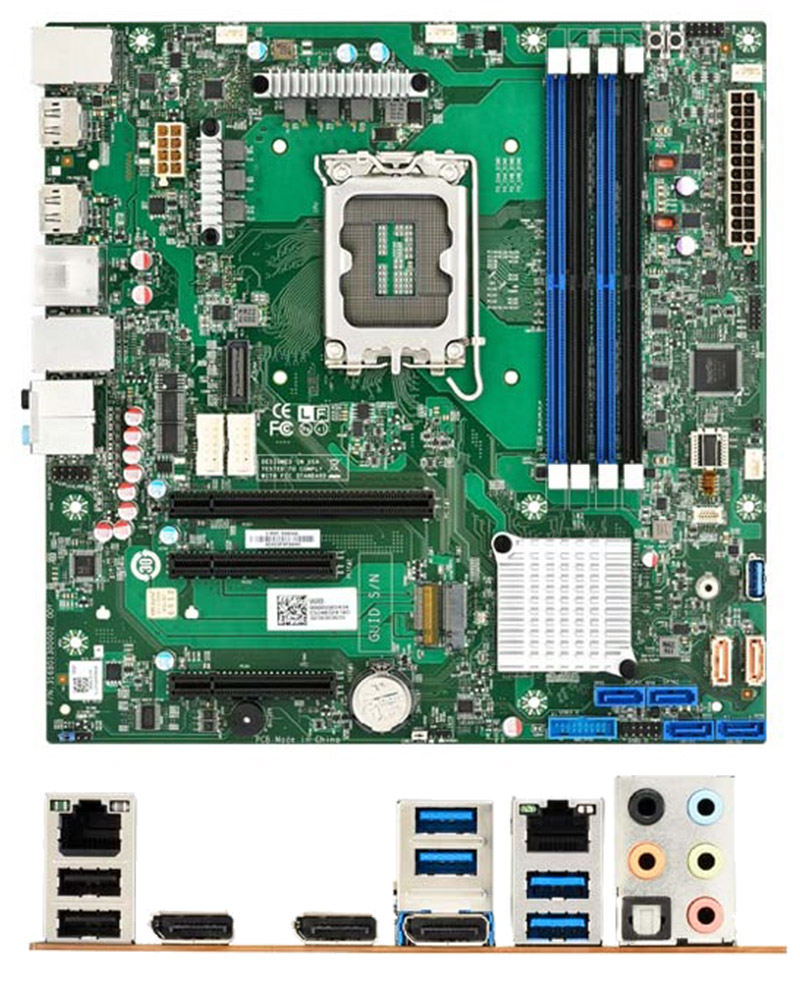

Mitac PH10ADU-Q670 Micro-ATX (Intel Q670, LGA1700) [PCIe x16, PCIe x8, 2x LAN]

Mitac PH10ADU-Q670 Micro-ATX (Intel Q670, LGA1700) [PCIe x16, PCIe x8, 2x LAN]
  • Intel Q670 !
  • 2x LAN !

  • Intel® Raptor Lake-S Refresh 14th/Raptor Lake-S 13th /Alder Lake-S 12th i9/i7/i5/i3 125W processor
  • Intel® Q670 Chipset
  • Intel® vPro technology support (Q670)
  • 4x DDR4 U-DIMM up to 128GB
  • 1 x PCIe X16 slot, 2 x PCIe X8 slot (x4 Lanes), 2 x M.2 2280/2210 M-key (NVME)
  • Support triple display for 3 x DisplayPort
  • Up to 6 x SATAIII (support RAID 0, 1, 5, 10)
  • Up to 2 x Intel® Gigabit Ethernet
  • Up to 7 x USB 3.2 Gen1, 4 x USB 2.0, 2 x COM ports
  • ATX power input


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
 FORM FACTORMicro-ATX: 9.6” x 9.6” (244 mm x 244 mm)
 PROCESSOR14th/13th/12th Gen Intel® Raptor Lake-S Refresh/ Raptor Lake-S/ Alder Lake-S LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor / TDP 125W
CHIPSET Intel® Q670
SYSTEM MEMORY4 x 288-pin U-DIMM / DDR4 3200 MHz
/ Max. 128 GB (Non-ECC)
GRAPHICSIntel® UHD Graphics 770
ETHERNETIntel® I219-LM Giga LAN + Intel® I225V 2.5 Giga LAN
AUDIORealtek® ALC888-VR
I/O CHIPSETNuvoton NCT6796D-E
TPMTPM Header / (support optional TPM module board NPCT750)
EXPANSION SLOTQ670: PCIe 3.0 X16 slot/ 2 x PCIe 3.0 X8 slot (X4 Lanes)/ M.2 2280 / 22110 M key (PCIe X4)/ M.2 2280 / 22110 M key (PCIe X2) / H610: PCIe 3.0 X16 slot/ 1 x PCIe 3.0 X8 slot (X4 Lanes)/ M.2 2280 / 22110 M key (PCIe X2)
BIOSAMI BIOS / 256 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
 VGA-
DVI-
HDMI-
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDS-
eDP (Option)-
 USB4 x USB 3.2 Gen 1(2 x with USB2.0 Signal only when H610) / 2 x USB 2.0
DISPLAY I/O3 x DisplayPort 1.2
AUDIO I/O1 x 6-stack Audio Jack
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERS-
 STORAGE6 x SATAIII (4 x SATAIII when H610)
USB2 x USB 2.0
/ 1 x USB 3.2 Gen1 Type A connector (This Type A connector is with USB2.0 Signal only when H610) / 2 x USB 3.2 Gen1
DISPLAY I/O-
AUDIO I/O1 x Front Audio
SERIAL PORT2 x RS232
PS/2 PORT-
PARALLEL PORT-
GPIO-
FAN1 x 4-pin CPU Fan Header / 3 x 4-pin system Fan Header
POWER1 x 8-pin ATX Power Connector
/ 1 x 24-pin ATX Power Connector
OTHERS1 x CMOS Jumper
/ 1 x FIO header
/ 1 x SPI TPM header
 POWER INPUTATX 8-pin + ATX 24-pin
 OPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
 OS SUPPORTLinux (support by request) / Ubuntu 20.04 / Windows® 10 64-bit / Windows® 11 64bit,
 PACKAGE1 x 50 cm SATA Cable / 1 x I/O Bracket / 1 x Motherboard
